Strainrite MB 3.0 Joule Dual Power Energizer

MB3 – Output 3.0 Joules Stored 4.2 Joules FEN00603

MBX Series have been built on over 25 years of experience in electric fencing by JVA for Strainrite Fencing Systems. Including many connectivity features such as:
IP Energizer® Controller (IPEC) is a simple mobile app for control and monitor of agricultural energizers, monitors and GPIO devices. Aimed at farmers, it offers the main features of Cloud Router, such as notifications, without the advanced features such as logging, user roles and permissions, and site administration.
Virtual Keypad (VKP) is the user interface embedded in this energizer, accessible by a phone or PC web browser. Use it to control, monitor or configure the unit locally, via the Wi-Fi network provided by the unit, or a local network if the device is connected to one. You must use VKP to configure advanced features of the energizer and to connect the unit to a local Wi-Fi network for IPEC or Cloud Router functionality.
Fence Line Communications (FLC) allows control of the energizer via the electric fence wire itself. Turn the energizer on or off by touching a JVA Directional Fault Finder Remote or other compatible product to the fence wire, anywhere in the paddock.

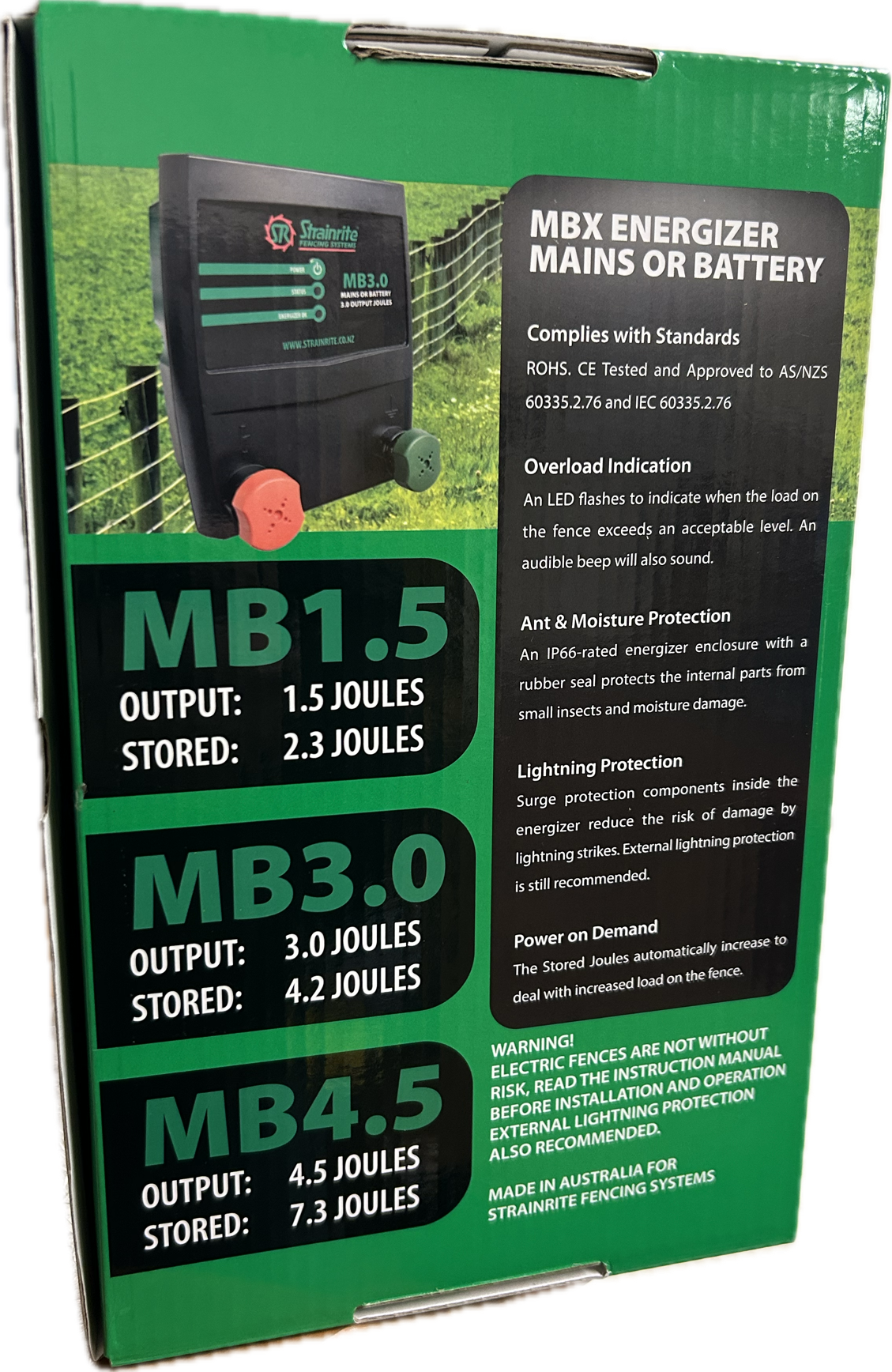

The Strainrite MBX range has three models available:

MB1.5 – Output 1.5 Joules Stored 2.3 Joules (FEN00601-US)

MB3 – Output 3.0 Joules Stored 4.2 Joules (FEN00603-US)

MB4.5 – Output 4.5 Joules Stored 7.3 Joules (FEN00604-US)

Complies with Standards
ROHS. CE Tested and Approved to AS/NZS 60335.2.76 and IEC 60335.2.76

Overload Indication

An LED flashes to indicate when the load on the fence exceeds an acceptable level. An audible beep will also sound.

Ant & Moisture Protection
An IP66-rated energizer enclosure with a rubber seal protects the internal parts from small insects and moisture damage.

Lightning Protection
Surge protection components inside the energizer reduce the risk of damage by lightning strikes. External lightning protection is still recommended.

Power on Demand
The Stored Joules automatically increase to deal with increased load on the fence.
